SSO Set-Up Instructions
Configuration Requirements
Setting up IDP
- In order to configure your account, your IT dept will need to provide the following metadata associated with your IDP:
- Issuer URL (Entity ID)
- SAML 2.0 Single Sign-On (SSO) Endpoint (HTTP)
- Single Logout (SLO) Endpoint (HTTP)
- X.509 Certificate
Setting up Users
- Users Must include the following attributes:
- System ID (named "systemid")
- Specifies the systems a user can access
- Systemids are in a string array variable in the idp
- User ID (named "userid")
- Represents the name of the user for reporting and logs
- User ID is limited to 12 characters or fewer
- Security Level (named "security")
- Must be one of the following values: 1, 3, or 5
- Security Level 1: Lowest security level. Can access displays and acknowledge patients.
- Security Level 3: Can access reporting features and displays.
- Security Level 5: Full access to the system, including configuration changes.

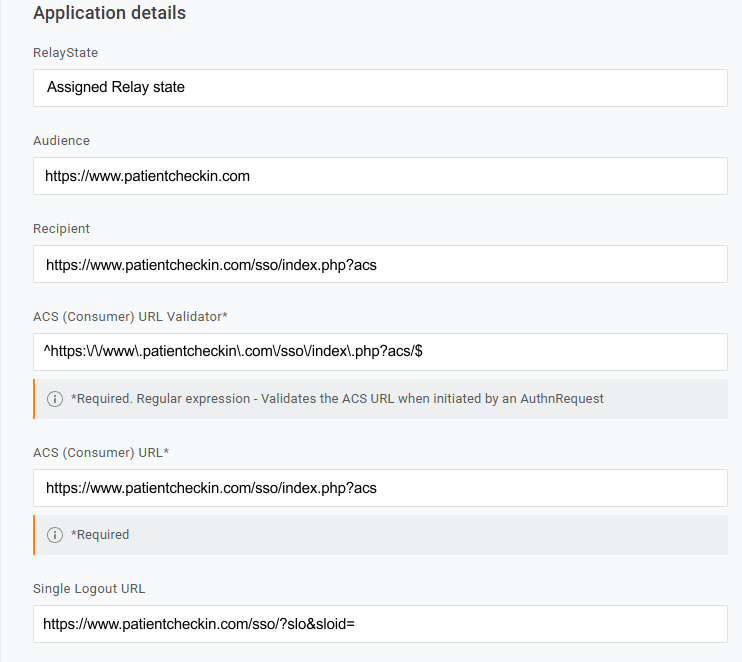

SP Metadata for Patient Check In
The following metadata will be provided when setup is initiated:
This will need to be input into your idp's configuration
- Entity Id: https://www.patientcheckin.com
- ACS Url: https://www.patientcheckin.com/sso/index.php?acs
- SLO Url: https://www.patientcheckin.com/sso/?slo&sloid=
- Relay State: Provided during setup
Support
For questions on how to get started using sso, please contact us at:
- Phone: (800)-971-8871
- Email: support@checkinsystems.com
